Self-Priming Pumps

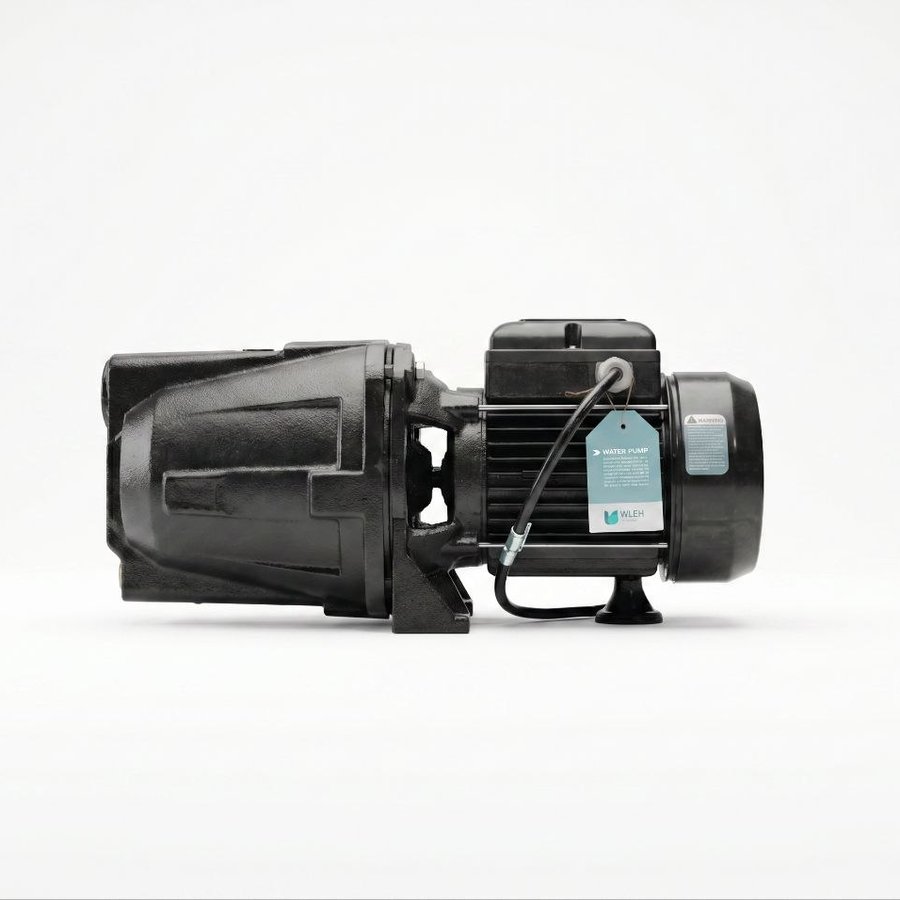

CAM100 Series
Model: CAM100
Self-priming centrifugal electro pump for reliable water pumping, even when the suction line contains air.
Key features
- Self-priming design
- Cast iron pump body
- Stainless steel & Noryl impeller
- IP44 protection
Applications
Water transfer and tank emptying, gardening, pool drainage, and domestic use.
Technical specifications
Hydraulic specifications
| Flow rate | 57–10 / 27–50 L/min |
|---|---|
| Max head | 57 m |
| Liquid temperature | 0–50 °C |
Electric motor
| Motor power | 0.74 kW (single-phase) |
|---|---|
| Insulation class | F |
| Protection class | IP44 |
Materials & construction
| Motor body | Aluminium |
|---|---|
| Pump body | Cast iron |
| Impeller | Stainless steel & Noryl (Bakelite) |
| Shaft | Stainless steel CK45 |
