Peripheral Pumps

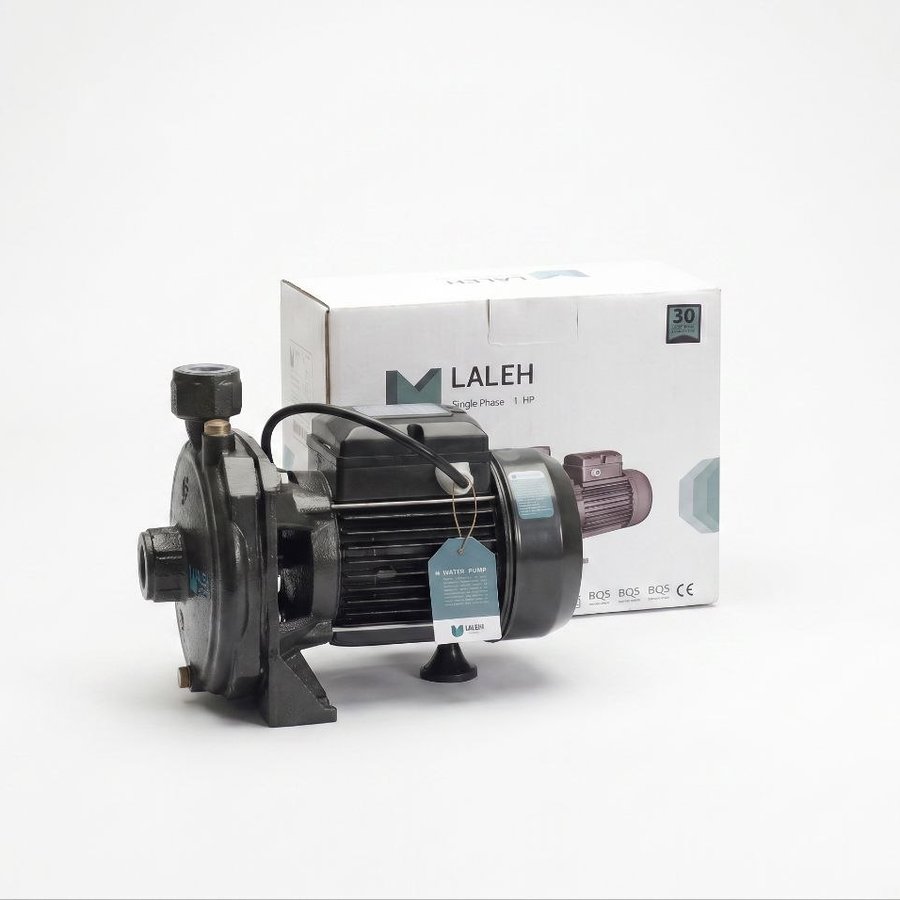

CM100 Series
Model: CM100
Single-stage peripheral electric water pump, designed and built for domestic and industrial use. Its high-pressure capability makes it a classic peripheral pump.
Key features
- Cast iron pump body
- Stainless steel & Noryl impeller
- Continuous duty with thermal protection
- IP44 protection
Applications
Boosting domestic water pressure, garden irrigation systems, and industrial applications.
Technical specifications
Hydraulic specifications
| Flow rate | 25–90 / 33–20 L/min |
|---|---|
| Max head | 33 m |
| Liquid temperature | 0–50 °C |
Electric motor
| Motor power | 0.74 kW (single-phase) |
|---|---|
| Insulation class | F |
| Protection class | IP44 |
| Duty | Continuous, with thermal protection |
Materials & construction
| Motor body | Aluminium |
|---|---|
| Pump body | Cast iron |
| Impeller | Stainless steel & Noryl (Bakelite) |
| Shaft | Stainless steel CK45 |
